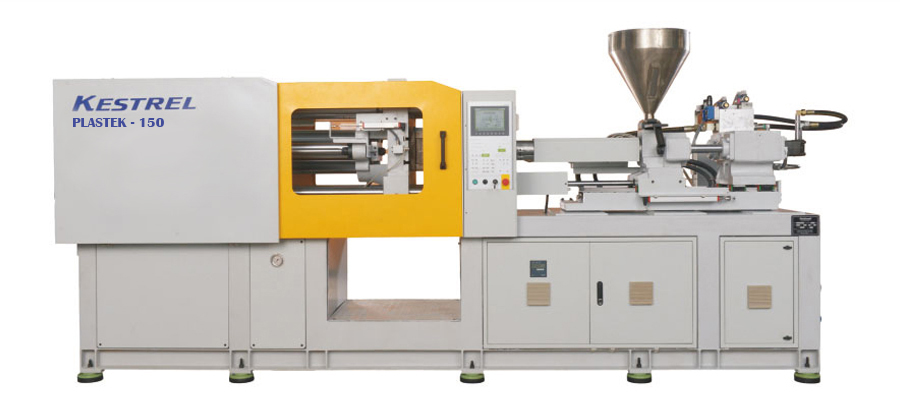

Plastek 150
SPECIFICATIONS UNIT A B
INJECTION UNIT
Screw Dia mm 45 50
Injection Pressure kg/cm² 2600 2100
Injection Volume cm³ 317 392
Shot Weight PS gram 285 352
Shot Weight PE gram 265 333
Screw Stroke mm 200+5 200+5
Injection Rate cm³/sec 137 169
Injection Speed mm/sec 86.3 86.3
Plasticizing Capacity kg/hr 93 122
Max.Screw Speed rpm 350 350
L/D Ratio - 20:01 20:01
Nozzle Contact Force ton 3.4 3.4
Heater Capacity kw 12.5
CLAMPING UNIT
Clamp Force ton 150
Mold Opening Force ton 6
Distance Bet.Tie Bars mm 520x520
Platen Dimensions WxH mm 770x790
Maximum Day Light mm 900
Minimum Mold height mm 250
Mold Closing Speed-Max m/min 40
Mold Opening Speed-Max m/min 40
Ejector Force ton 4.5
Ejector Stroke mm 125
GENERAL
Pump Motor kw 22
Oil Tank Capacity ltr 300
Machine Dimension - LxWxH mm 5500x1250x2000
Machiene Weight ton 7
System Pressure bar 165
