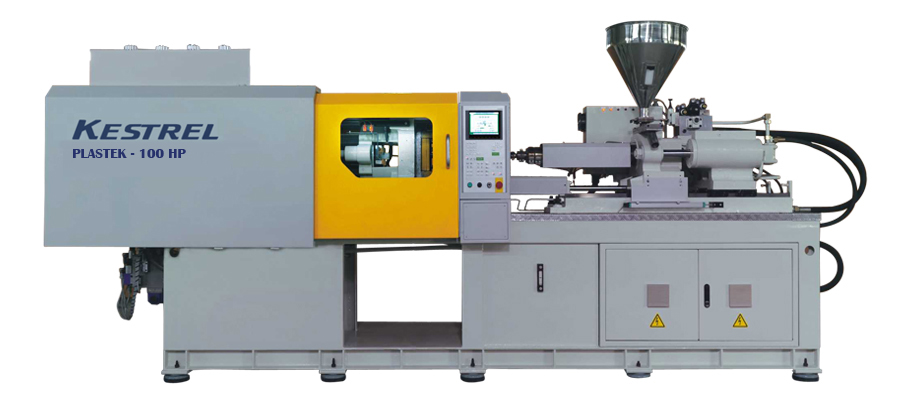

PLASTIC INJECTION MOLDING MACHINES
| SPECIFICATIONS | UNIT | A* | B | C* |
|---|---|---|---|---|
| Screw Dia | mm | 32 | 35 | 38 |
| Injection Pressure | kg/cm² | 2400 | 2000 | 1700 |
| Injection Volume | cm³ | 120 | 144 | 170 |
| Shot Weight PS | gram | 109 | 131 | 155 | Shot Weight PE | gram | 87 | 95 | 113 |
| Injection Rate(Max) | cm³ | 84 | 101 | 120 |
| Plasticizing Capacity | kg/hr | 55 | 65 | 77 |
| Max Screw Speed | rpm | 275 | 275 | 275 |
| L/D Ratio | - | 22:1 | 20:1 | 18:1 |
| Nozzle Contact Force | ton | 3.5 | 3.5 | 3.5 |
| Heater Capacity | kW | 5.5 | 5.5 | 5.5 |
| Clamp Force | ton | 100 | ||
| Mold Opening Force | ton | 3.75 ton | ||
| Mold Opening Stroke | mm | 450 | ||
| Distance Between Tie Bars | mm | 370x370 | ||
| Platen Dimension | mm | 600x600 | ||
| Maximum Day Light | mm | 700(750) | ||
| Minimum Mold Height | mm | 200(250) | ||
| Mold Closing Speed | m/min | 45 | ||
| Mold Opening Speed | m/min | 32 | ||
| Ejector Force | ton | 3.24 | ||
| Ejector Stroke | mm | 100 | ||
| Pump Motor(Servo) | kW | 8 | ||
| System Pressure | bar | 165 | ||
| Oil Tank Capacity | ltr | 350 | ||
| Machine Dimension - LxWxH | mm | 5200x1250x2000 | ||
| Machine Weight | ton | 5.5 | ||
