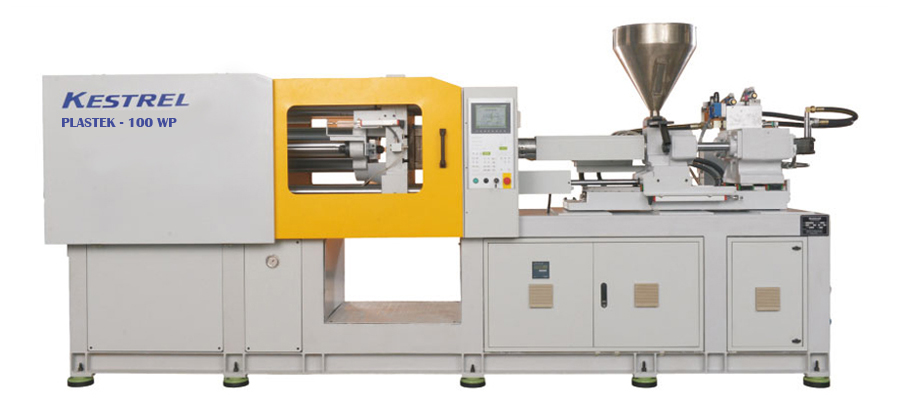

PLASTIC INJECTION MOLDING MACHINES
| SPECIFICATIONS | UNIT | A | B | C |
|---|---|---|---|---|
| Screw Dia | mm | 36 | 40 | 45 |
| Injection Pressure | kg/cm² | 1980 | 1600 | |
| Injection Volume | cm³ | 152 | 188 | 238 |
| Shot Weight PS | gram | 138 | 171 | 216 |
| Shot Weight PE | gram | 114 | 141 | 178 |
| Injection Rate(Max) | cm³/sec | 100 | 124 | 157 | Plasticizing Capacity | kg/hr | 55 | 65 | 77 |
| Max Screw Speed | rpm | 350 | 350 | 350 |
| L/D Ratio | - | 22:01 | 20:01 | 18:01 |
| Nozzle Content Force | ton | 3.5 | 3.5 | 3.5 |
| Heater Capacity | kw | 5.5 | 5.5 | 6 |
| Clamp Force | ton | 100 | ||
| Mold Opening Force | ton | 6 | ||
| Mold Opening Stroke | mm | 550 | ||
| Distance Between Tiebars | mm | 460x430 | ||
| Platen Dimensions | mm | 700x655 | ||
| Maximum Day Light | mm | 750 | ||
| Minimum Mold Height | mm | 200 | ||
| Mold Closing Speed | m/min | 40 | ||
| Mold Opening Speed | m/min | 40 | ||
| Ejector Force | ton | 3.24 | ||
| Ejector Stroke | mm | 100 | ||
| Pump Motor(Servo) | kw | 11 | ||
| System Pressure | bar | 165 | ||
| Oil Tank Capacity | ltr | 250 | ||
| Machine Dimension - L x W x H | mm | 5000x1200x2000 | ||
| Machine Weight | ton | 5 Ton | ||
