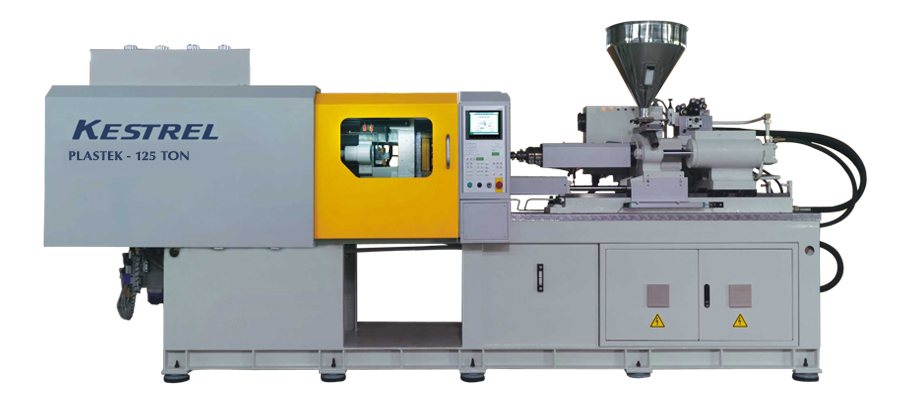

PLASTIC INJECTION MOLDING MACHINES
| SPECIFICATIONS | UNIT | A* | B | C* |
|---|---|---|---|---|
| Screw Dia | mm | 40 | 45 | |
| Injection Pressure | kg/cm² | 1980 | 1564 | |
| Injection Volume | cm³ | 213 | 270 | |
| Shot Weight PS | gram | 190 | 243 | Shot Weight PE | gram | 153 | 175 |
| Screw Stroke | mm | 170+5 | 170+5 | |
| Injection Rate(Max) | cm³ | 139 | 176 | |
| Injection Speed(Max) | cm³ | 110 | 110 | |
| Plasticizing Capacity | kg/hr | 65 | 77 | |
| Max Screw Speed | rpm | 350 | 350 | |
| L/D Ratio | - | 20:01 | 18 | |
| Nozzle Contact Force | ton | 3.5 | 3.5 | |
| Heater Capacity | kW | 6 | 6 | |
| Clamp Force | ton | 125 | ||
| Mold Opening Force | ton | 6 ton | ||
| Mold Opening Stroke | mm | 540 | ||
| Distance Between Tie Bars | mm | 455 x 425 | ||
| Platen Dimension | mm | 700 x 655 | ||
| Maximum Day Light | mm | 740 | ||
| Minimum Mold Height | mm | 200 | ||
| Mold Closing Speed | m/min | 40 | ||
| Mold Opening Speed | m/min | 32 | ||
| Ejector Force | ton | 3 | ||
| Ejector Stroke | mm | 100 | ||
| Motor for Variable displacement pump | kW | 15 | ||
| Machine Dimension (L X W X H) | kW | 4700 x 1300 x 2000 | ||
| Oil Tank Capacity | bar | 250 | ||
| Machine Weight | ltr | 6.5 | ||
| System Pressure | mm | 165 | ||
| Machine Weight | ton | 5.5 | ||
