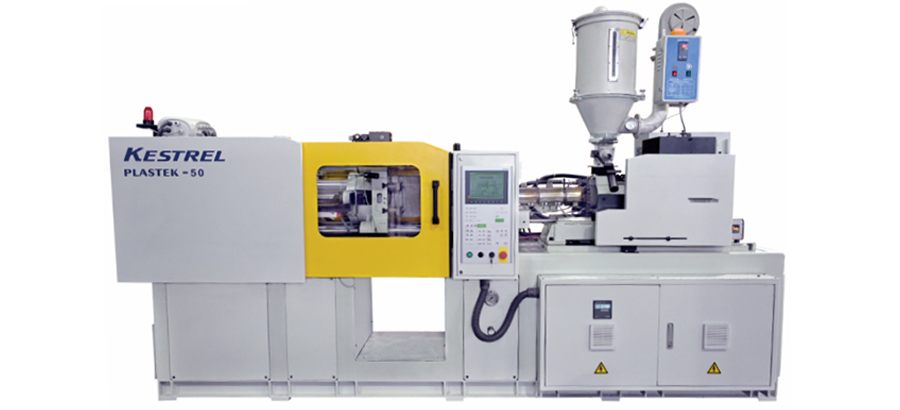

PLASTIC INJECTION MOLDING MACHINES
| SPECIFICATIONS | UNIT | A | B |
|---|---|---|---|
| Screw Dia | mm | 25 | 28 |
| Injection Pressure | kg/cm² | 3120 | 2487 |
| Injection Volume | cm³ | 56 | 71 |
| Shot Weight PS | gram | 50 | 64 |
| Shot weight PE | gram | 40 | 50 |
| Screw Stroke | mm | 115+5 | 115+5 |
| Injection Rate | cm³/sec | 51 | 64 |
| Injection Speed | mm/sec | 118 | 118 |
| Plasticizing Capacity | kg/hr | 20 | 22 |
| Max. Screw Speed | rpm | 300 | 300 |
| L/D Ratio | - | 20:01 | 20:01 |
| Nozzle Contact Force | ton | 1.1 | 1.1 |
| Heater Capacity | kw | 6.2 | |
| Clamp Force | ton | 50 | |
| Mold Opening Force | ton | 2 | |
| Mold Opening Stroke | ton | 350 | |
| Distance Bet.tie Bars | mm | 320x320 | |
| Platen Dimensions WxH | mm | 500x515 | |
| Maximum Day Light | mm | 500 | |
| Minimum Mold Height | mm | 150 | |
| Mold Closing Speed-Max | m/min | 40 | |
| Mold Opening speed-Max | m/min | 40 | |
| Ejector Force | ton | 1.8 | |
| Ejector Stroke | mm | 75 | |
| Pump Motor | kw | 7.5 | |
| Oil Tank Capacity | Itr | 125 | |
| Machine Dimension LxWxH | mm | 4000x1000x2000 | |
| Machine Weight | ton | 4 | |
| System Pressure | bar | 150 | |
